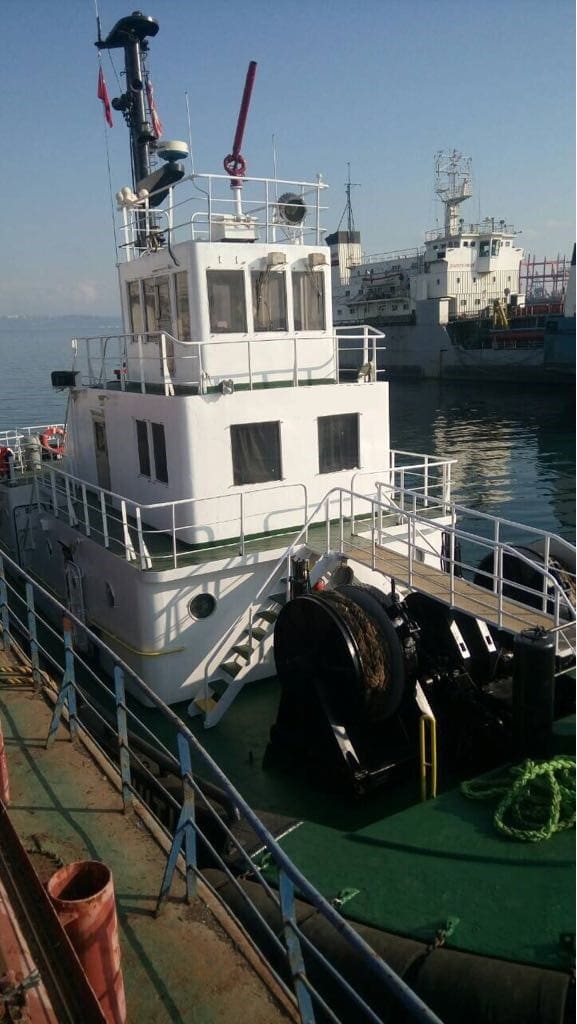

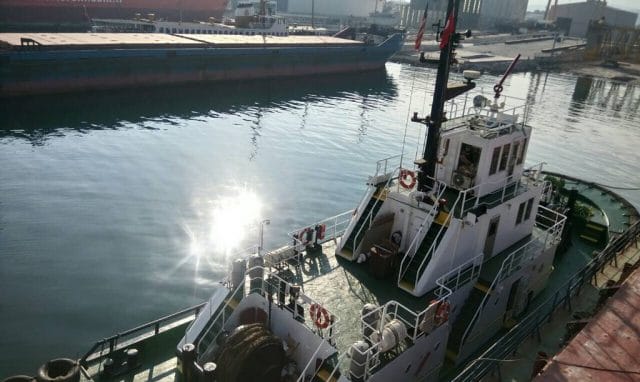

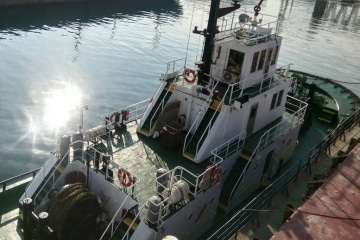

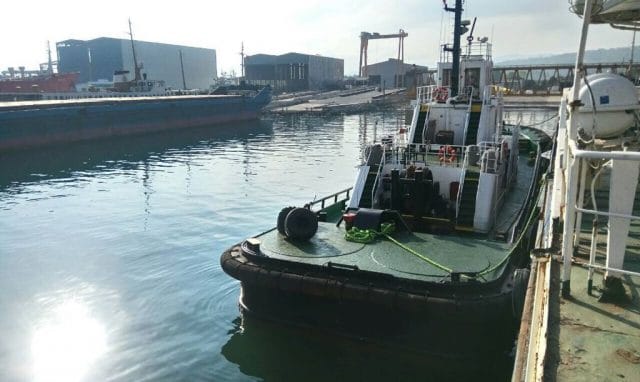

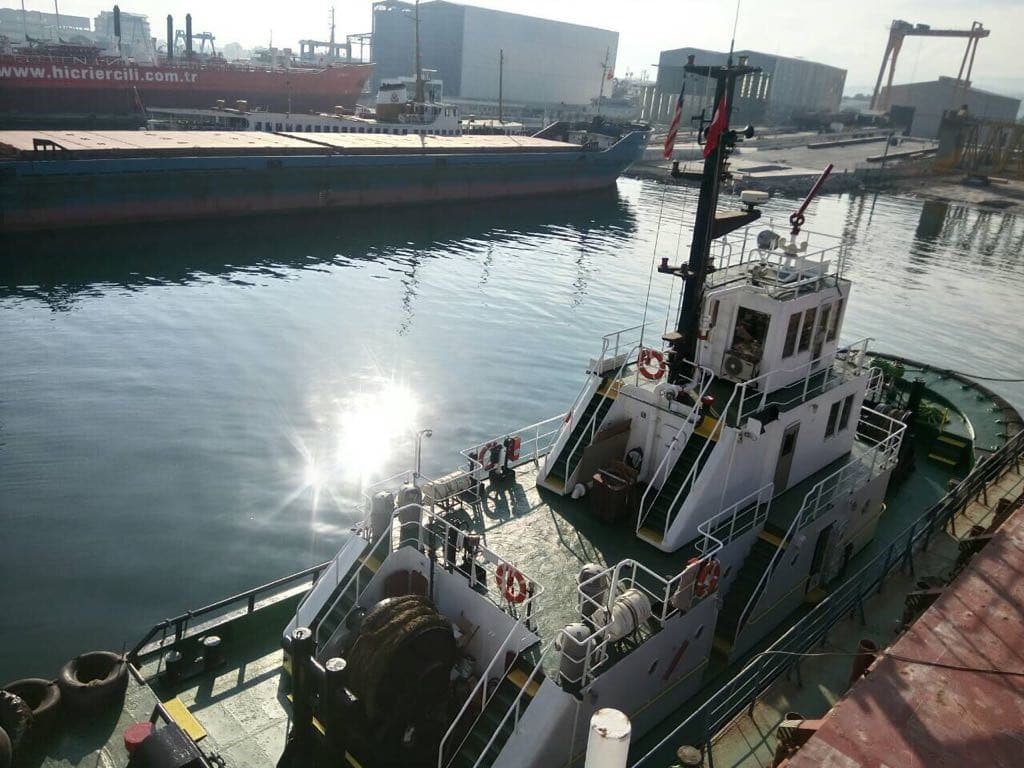

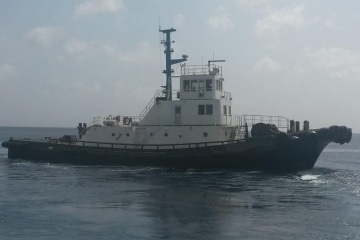

ASD Tug - 42 tonnes Bollard Pull

42 tonnes Bollard Pull ASD tug, built in Japan, delivered with new Classification.

Specifications

General

ASD tug

Built 1990, Japan

Class BV, Unrestricted Navigation, valid till 2023

Dimensions / Ratings

Length 30,80 m

Beam 8,80 m

Draft (designed) 2,70 m

Machinery / Propulsion

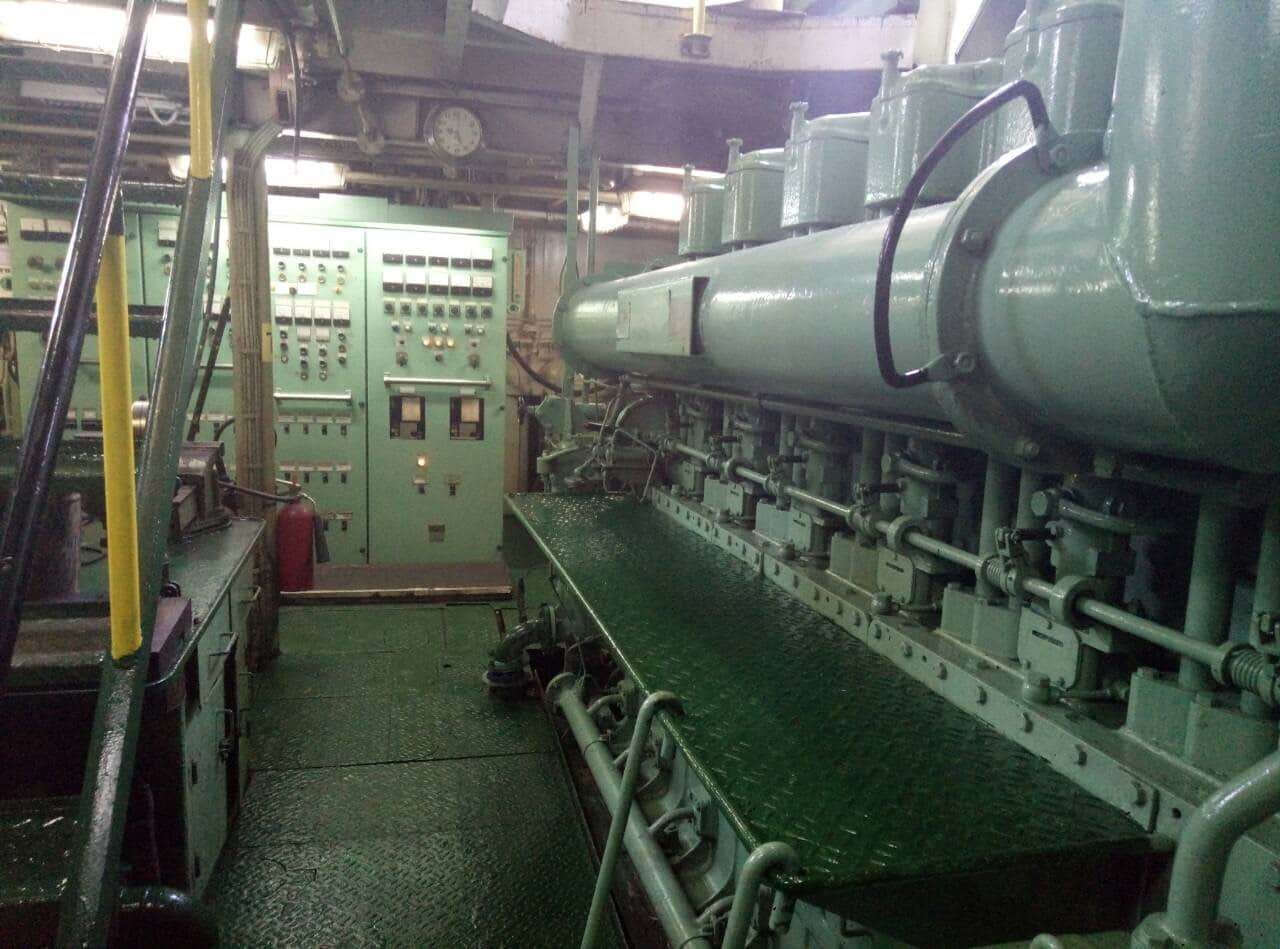

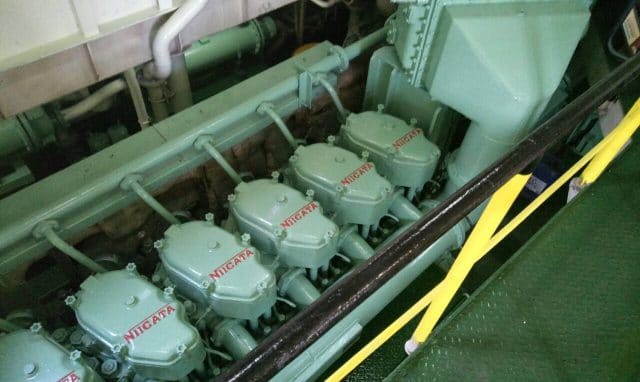

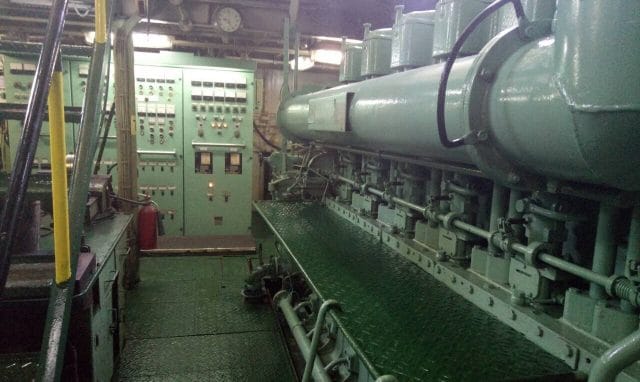

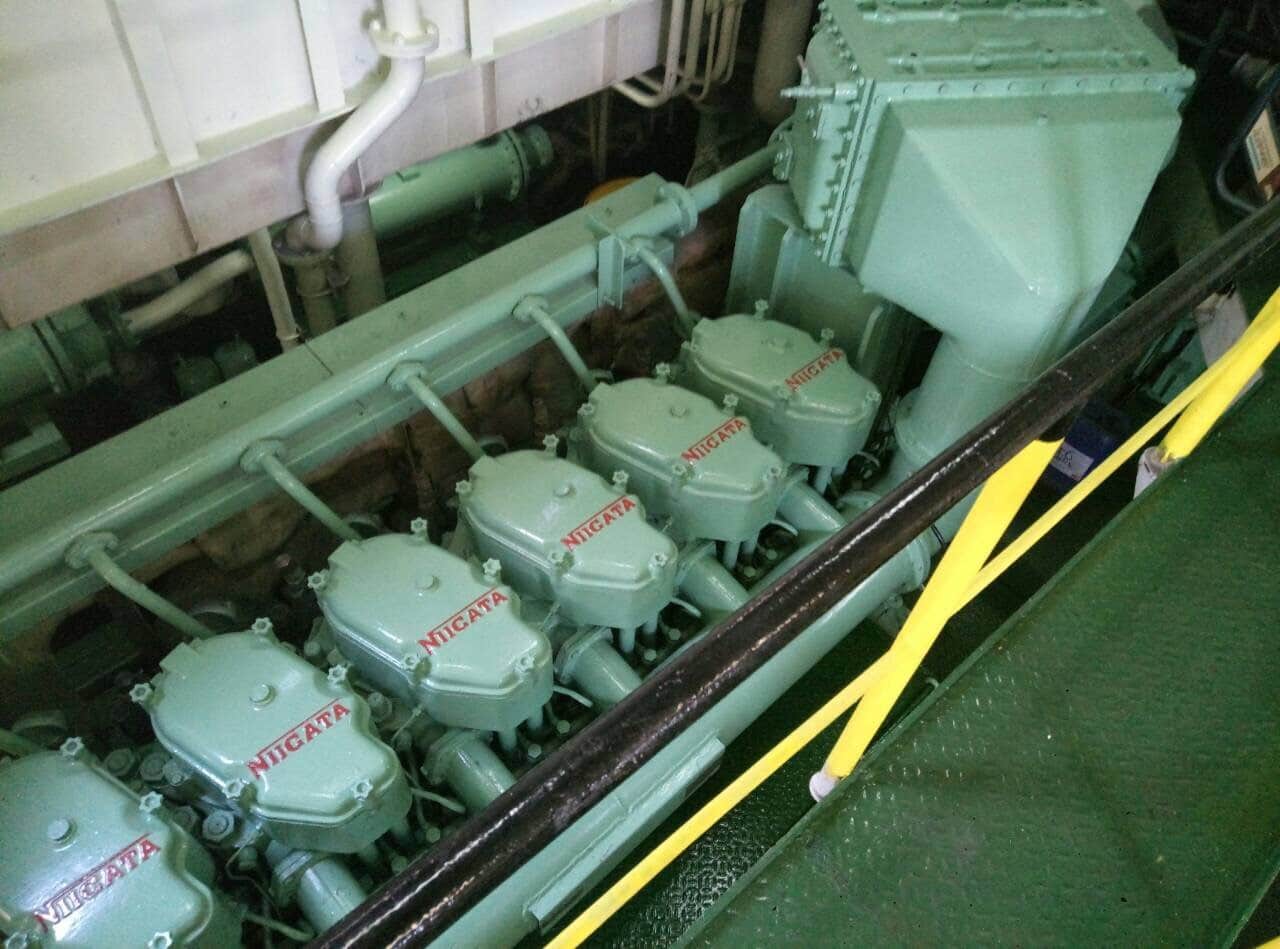

Main engines 2 x Niigata 6L25CXE

2 x Rudderpropellers diam 2000mm, Pitch ratio 1,015 – 2206 kW

Speed 14 knots

Bollard pull 42 tonnes

Accomodation

3 x single berth cabin

1 x 6 berth cabin

FiFi

1 x Daiichi pump 6.000 l /min at 10 bar

Tank capacities

Fuel 44 M3

Potable water 23 M3

Foam 15 M3

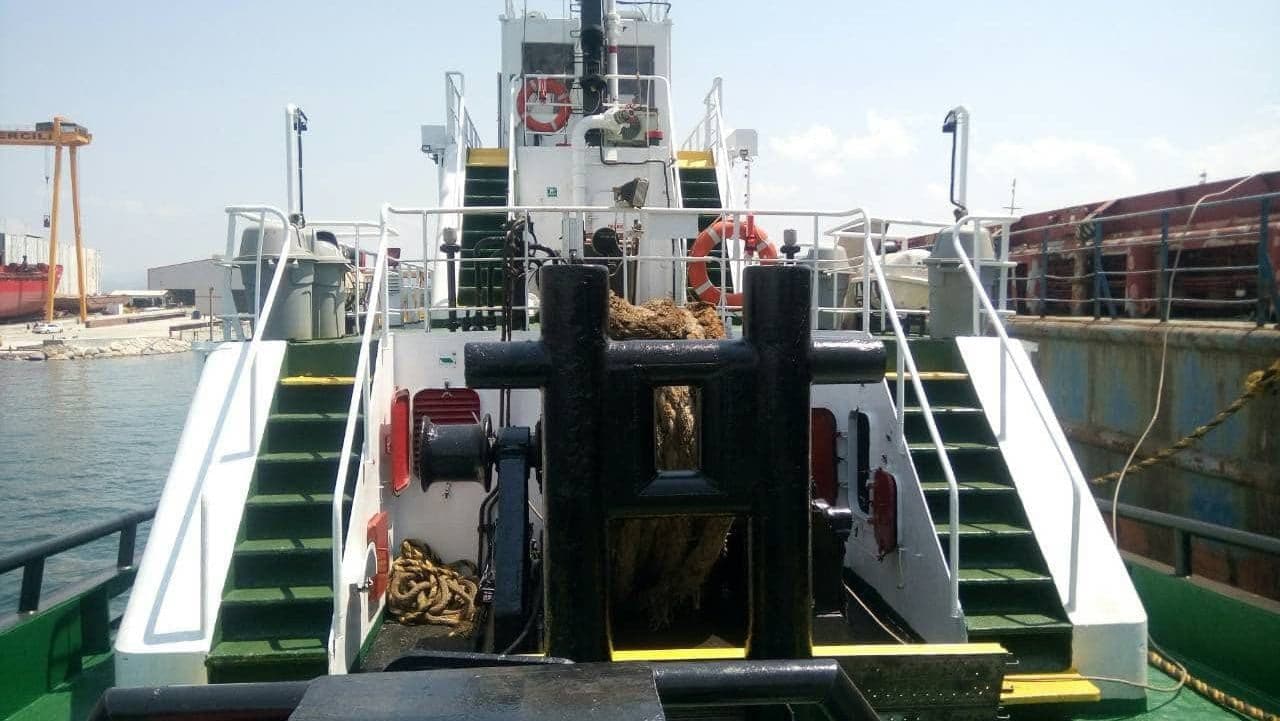

Deck equipment

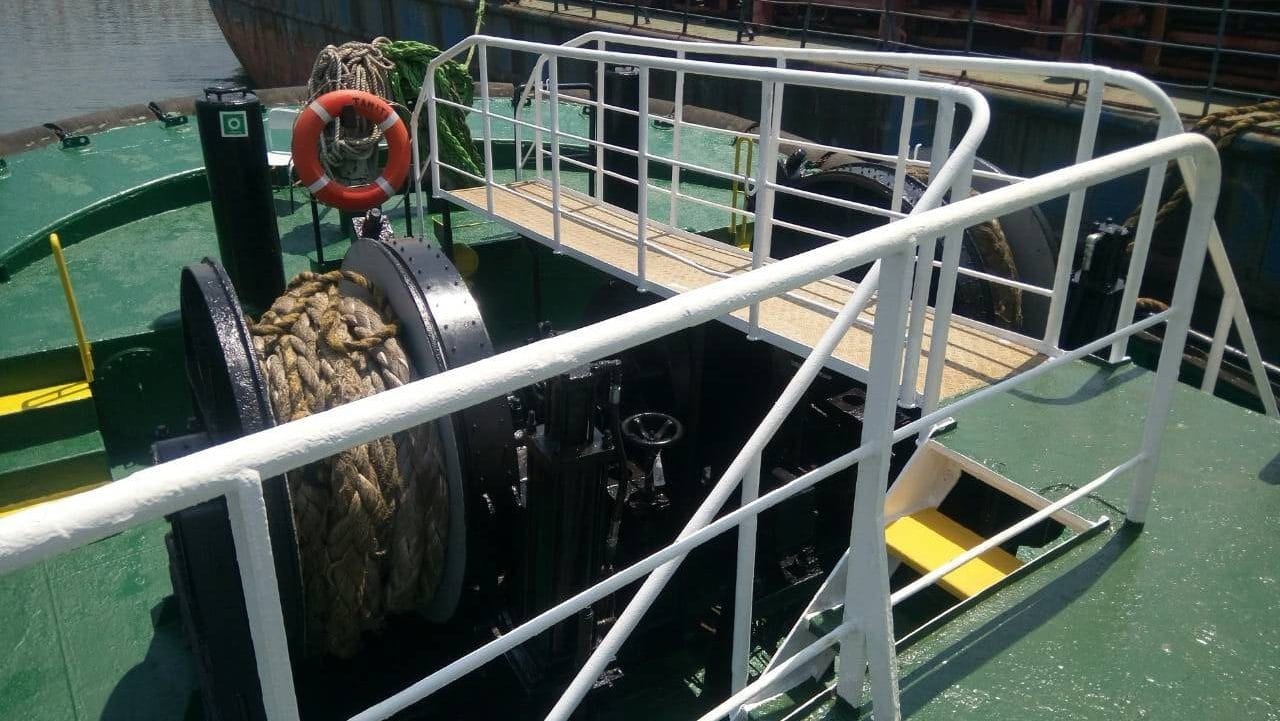

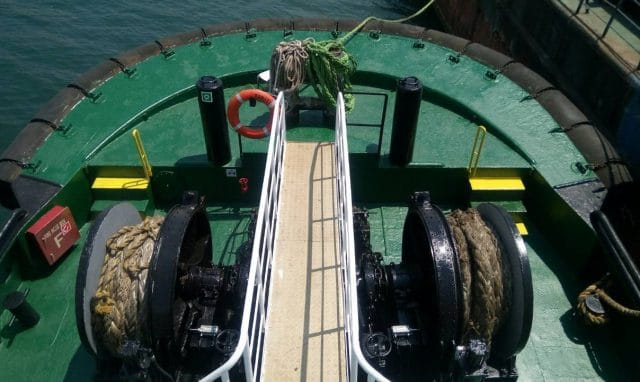

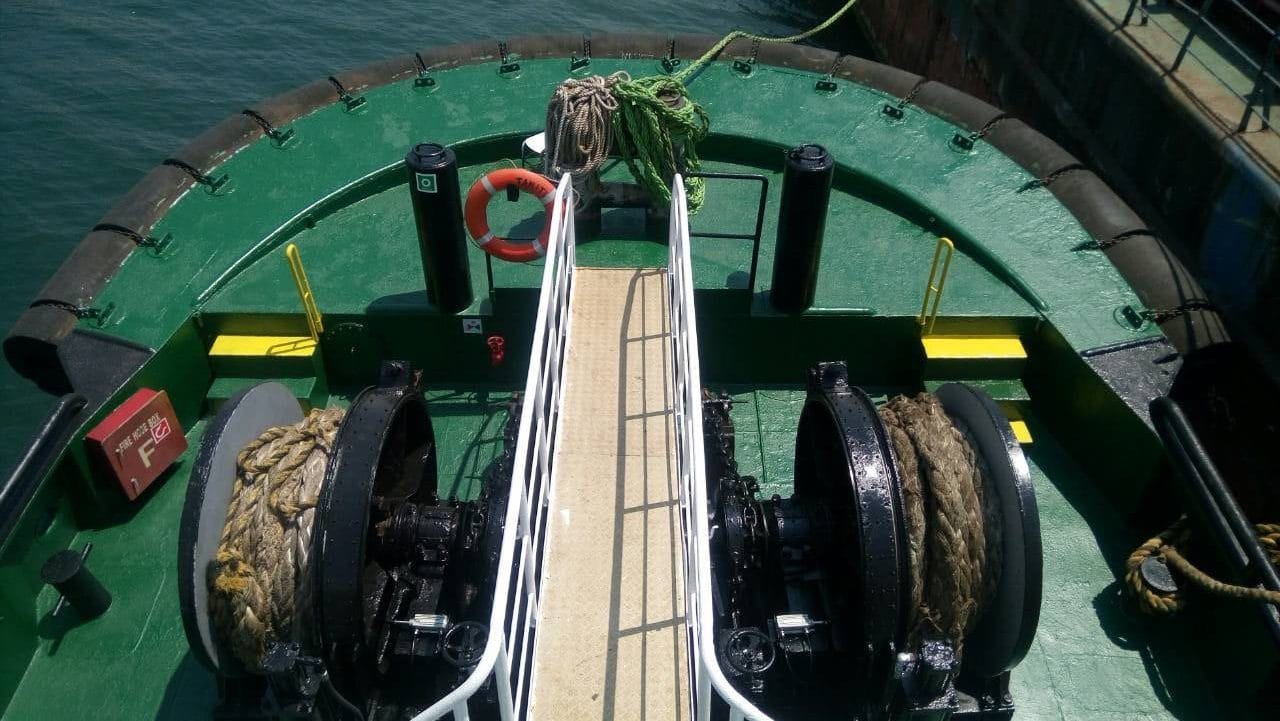

Towing winch FWD

Hydraulic, Single Drum 45 t brake load, line pull 3,5 t@14m / min on 1^st layer

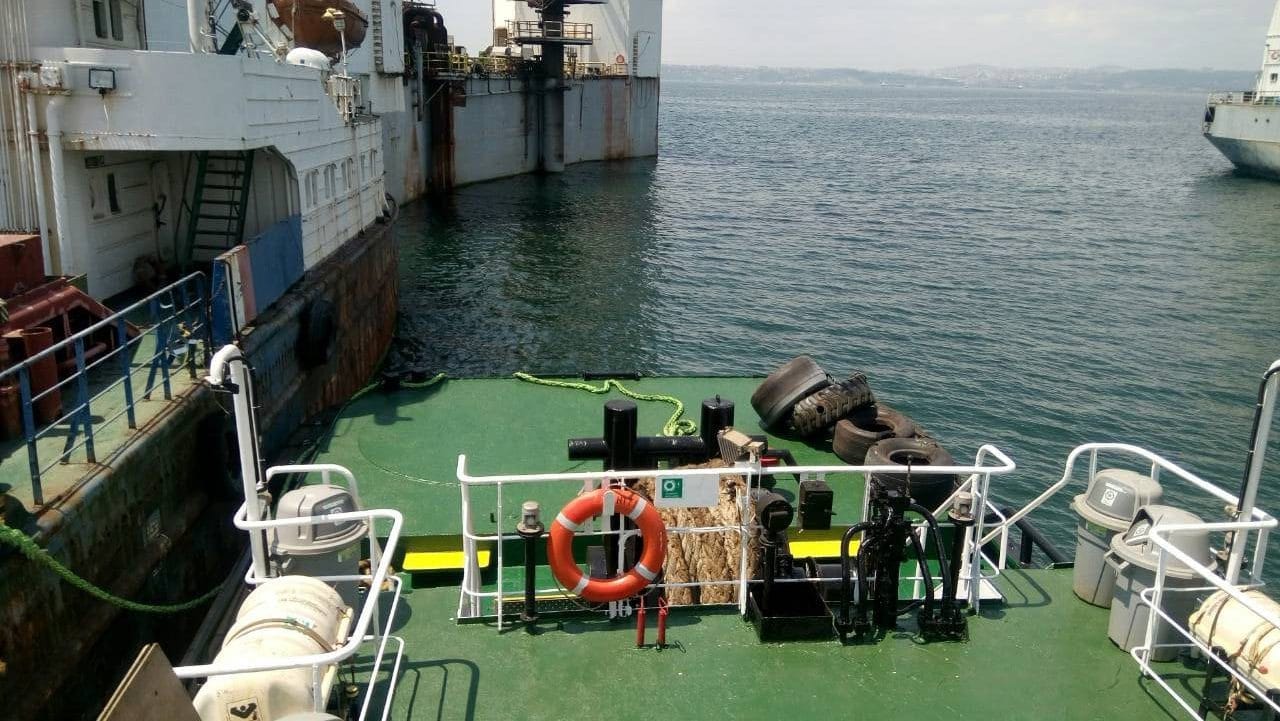

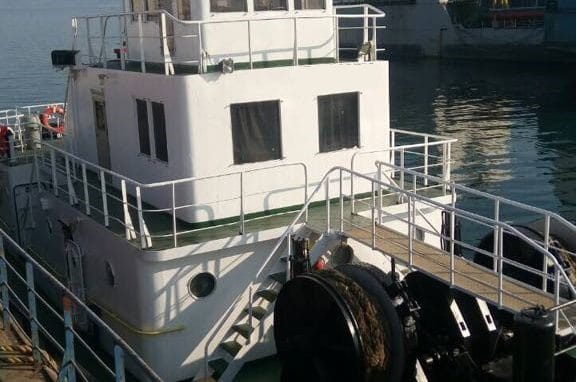

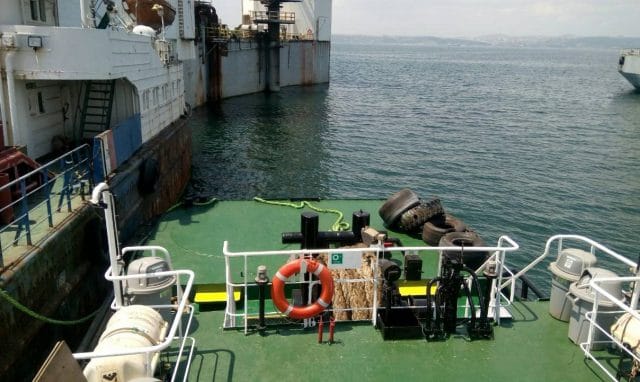

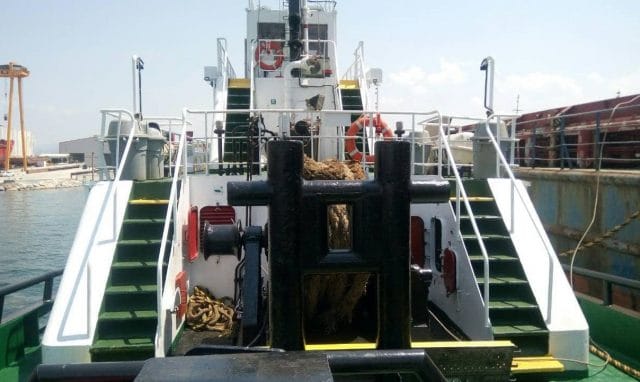

Towing winch AFT

Hydraulic, Single Drum 45 t brake load, line pull 3,5 t@14 m/min on 1^st layer
