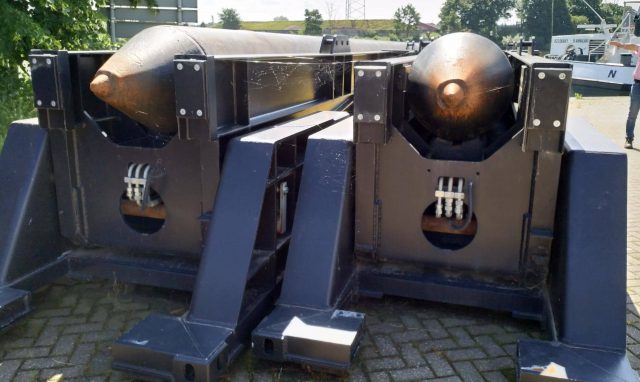

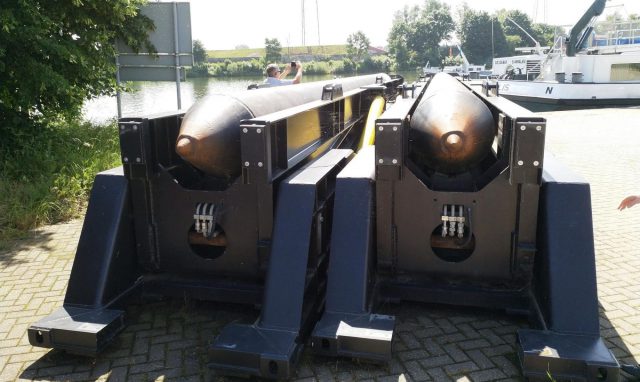

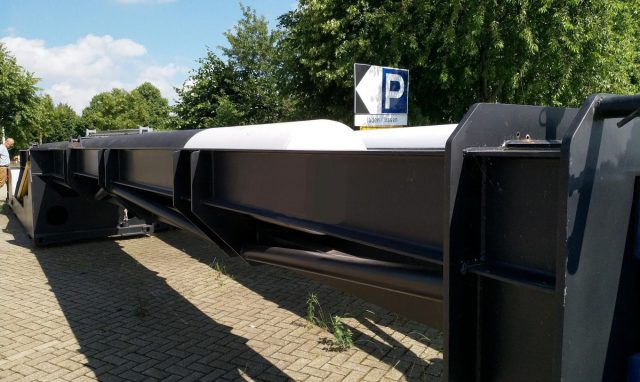

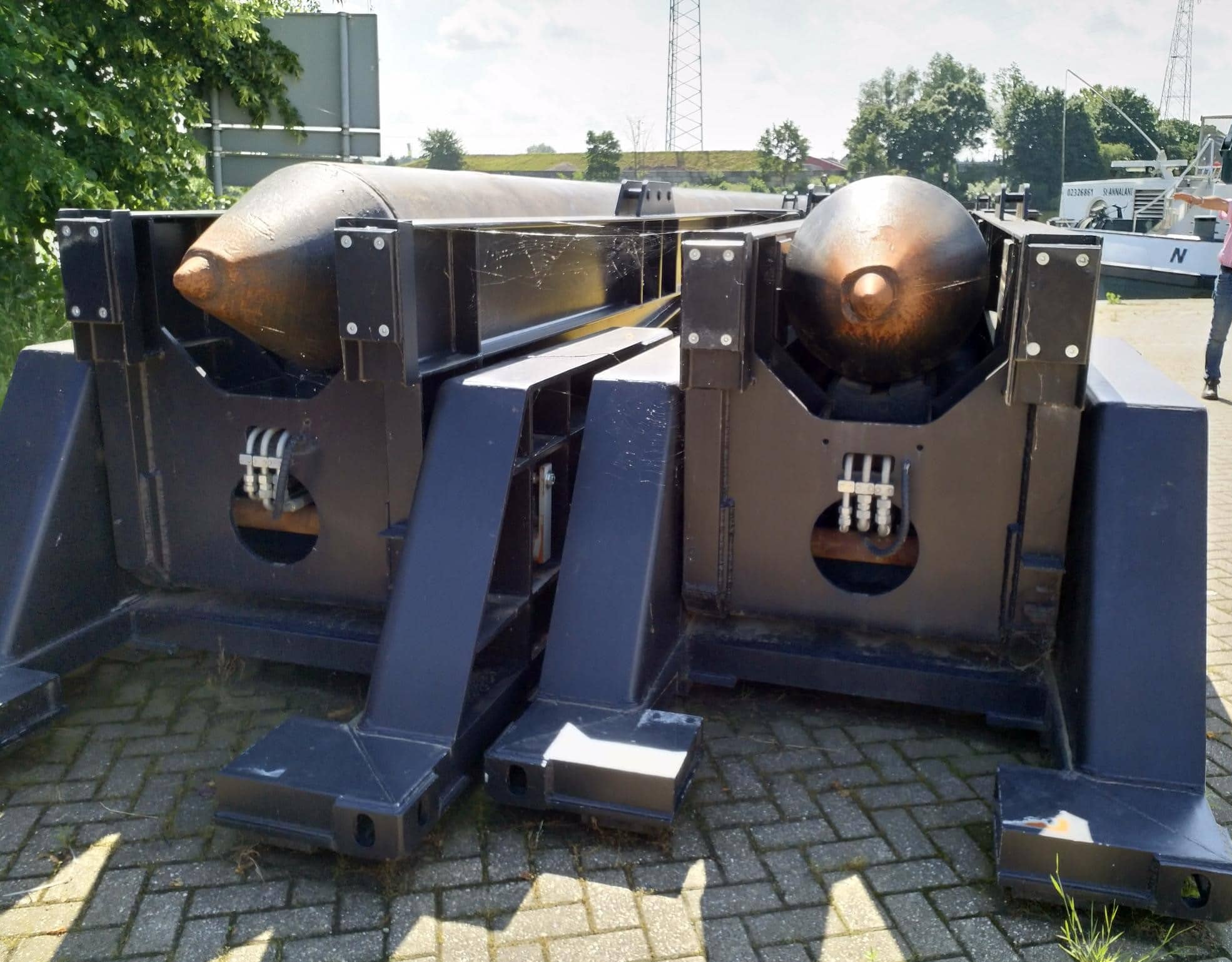

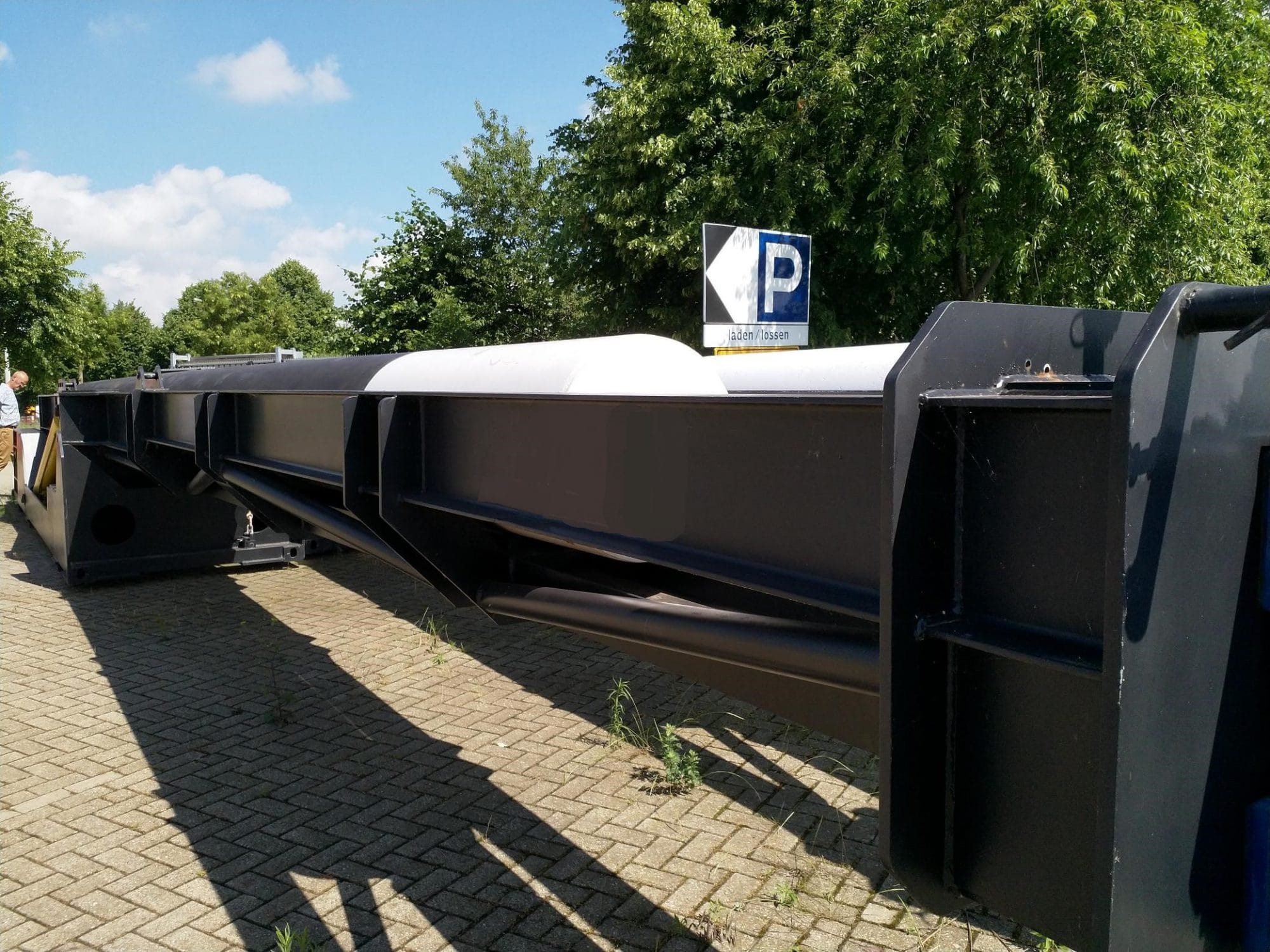

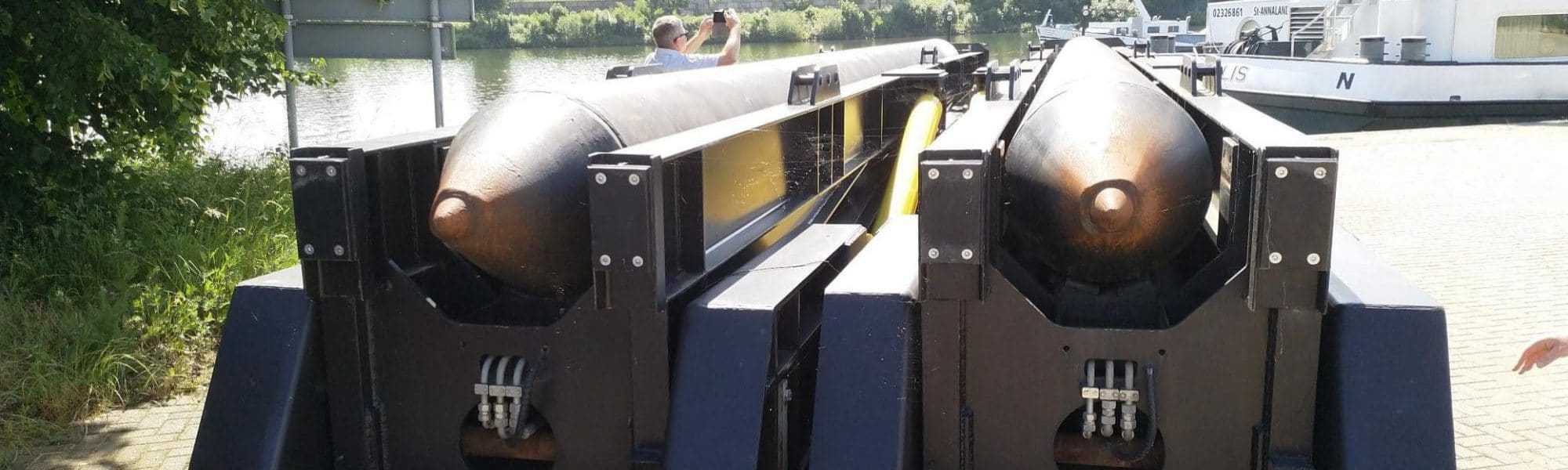

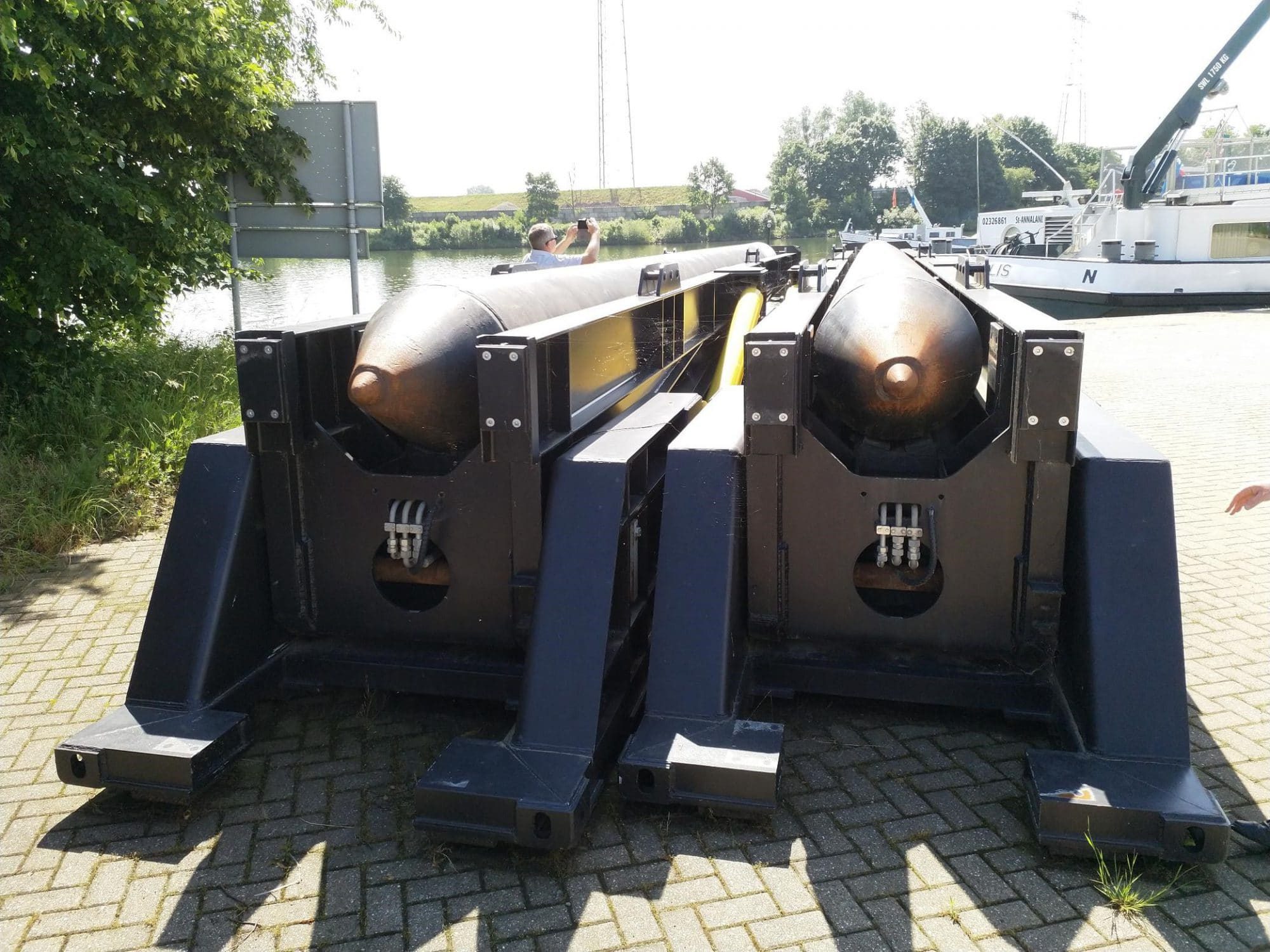

We can develop for sale this easy spudleg tilting system.
Specifications
This spudleg tilting system avoids the use of cranes to operate the legs.
Length: 14.50 m.
Beam: 1.55 m.
Height: 2.00 m.
Weight without spuds 14 tonnes.
Cylinders: Bore 160mm – Rod 125 mm – Stroke 2500 mm.

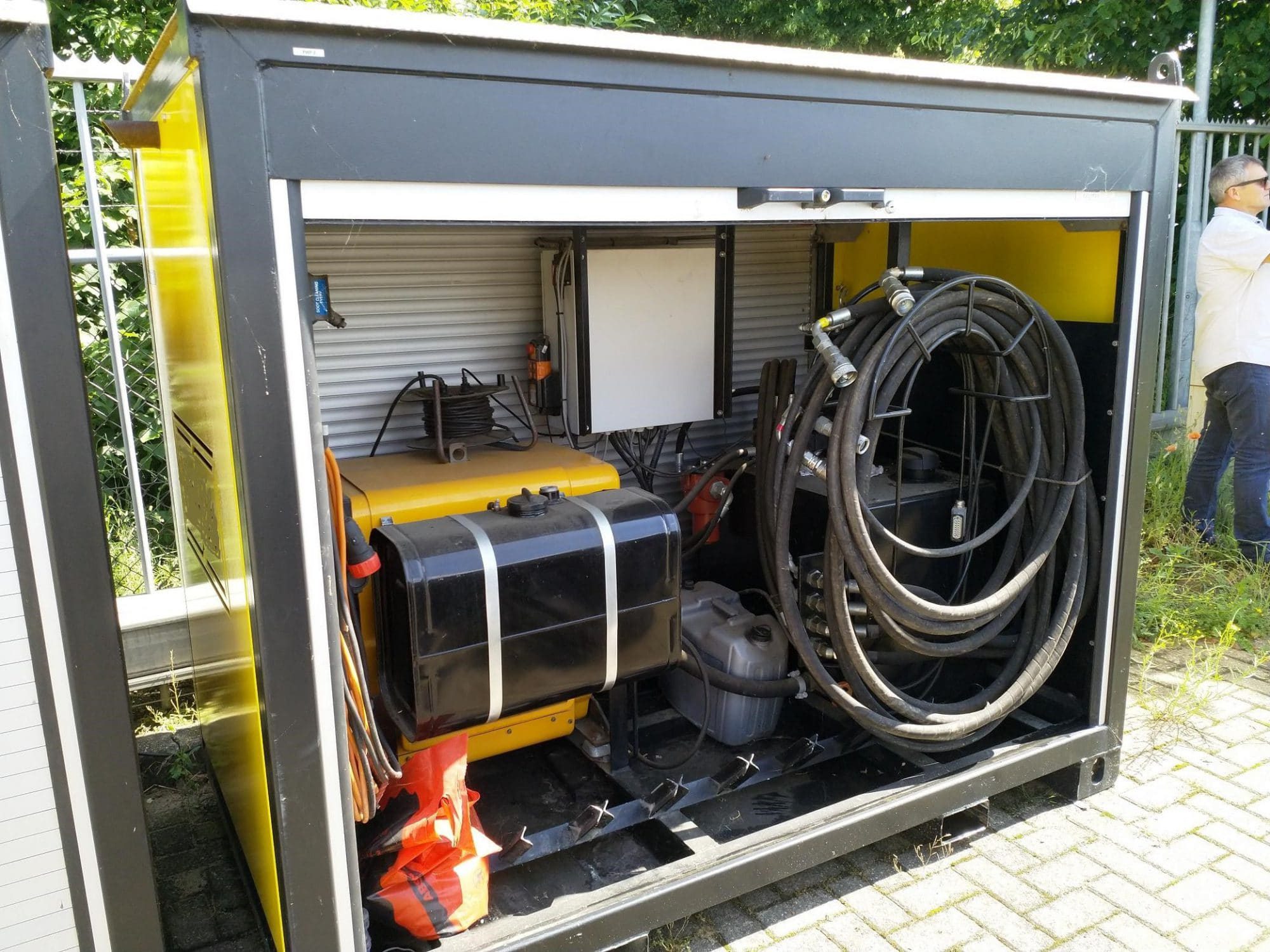

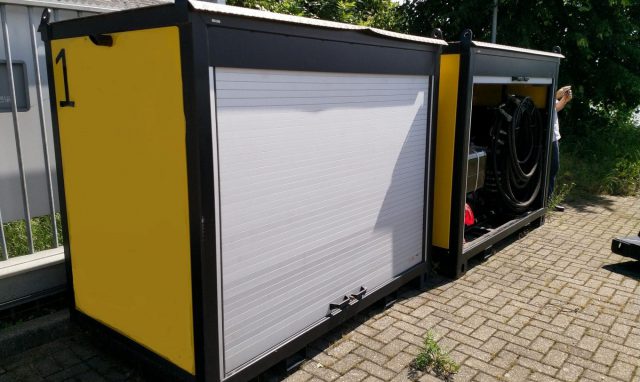

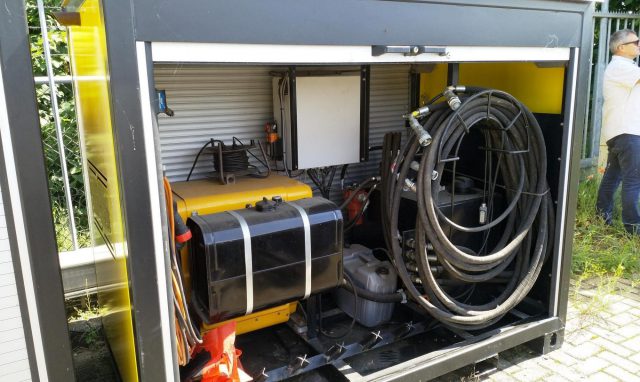

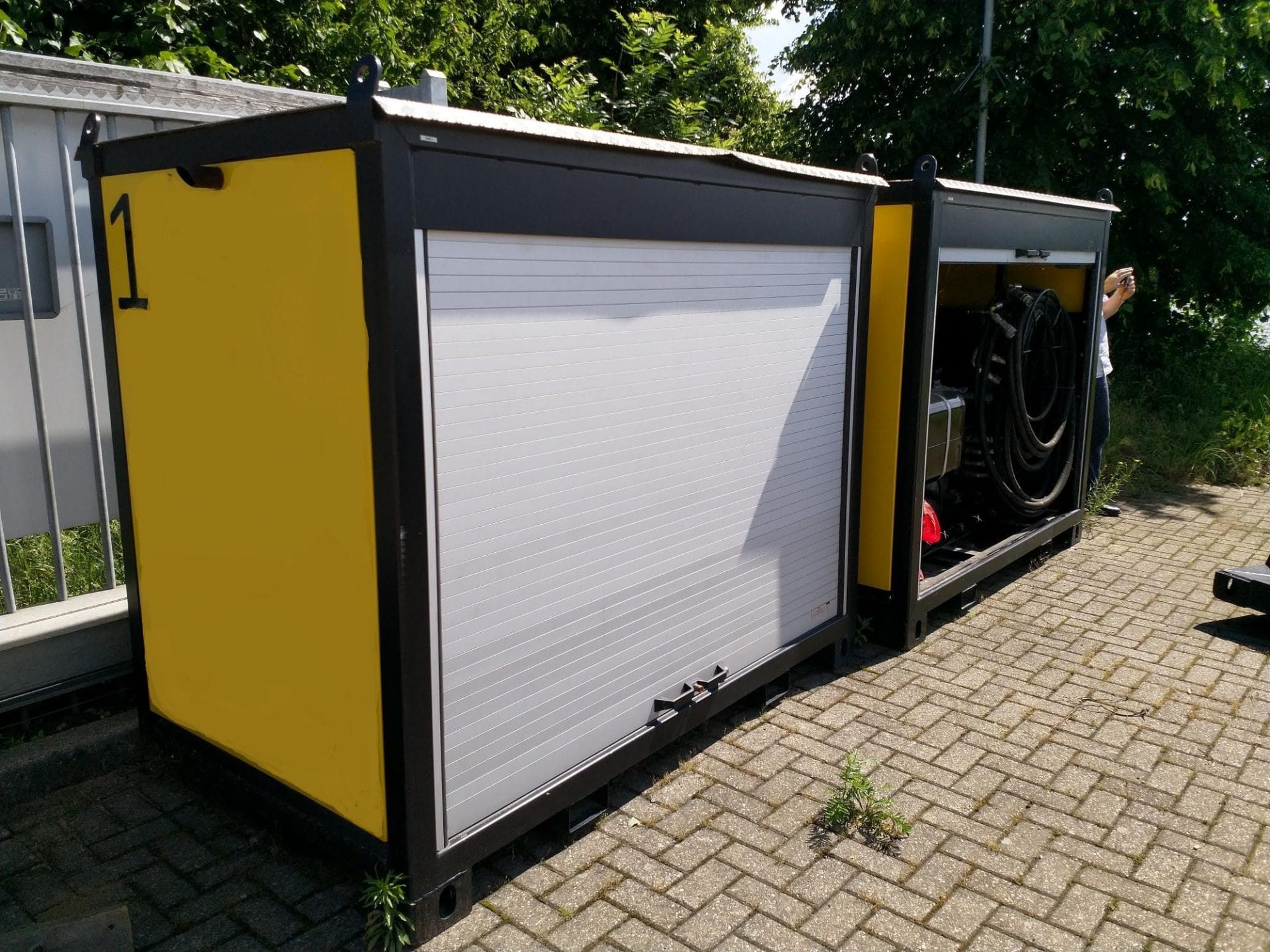

Powerpacks: Max pressure 250 bar. Max hydraulic power: 30 KW
Generator type: LBT-H-35-D

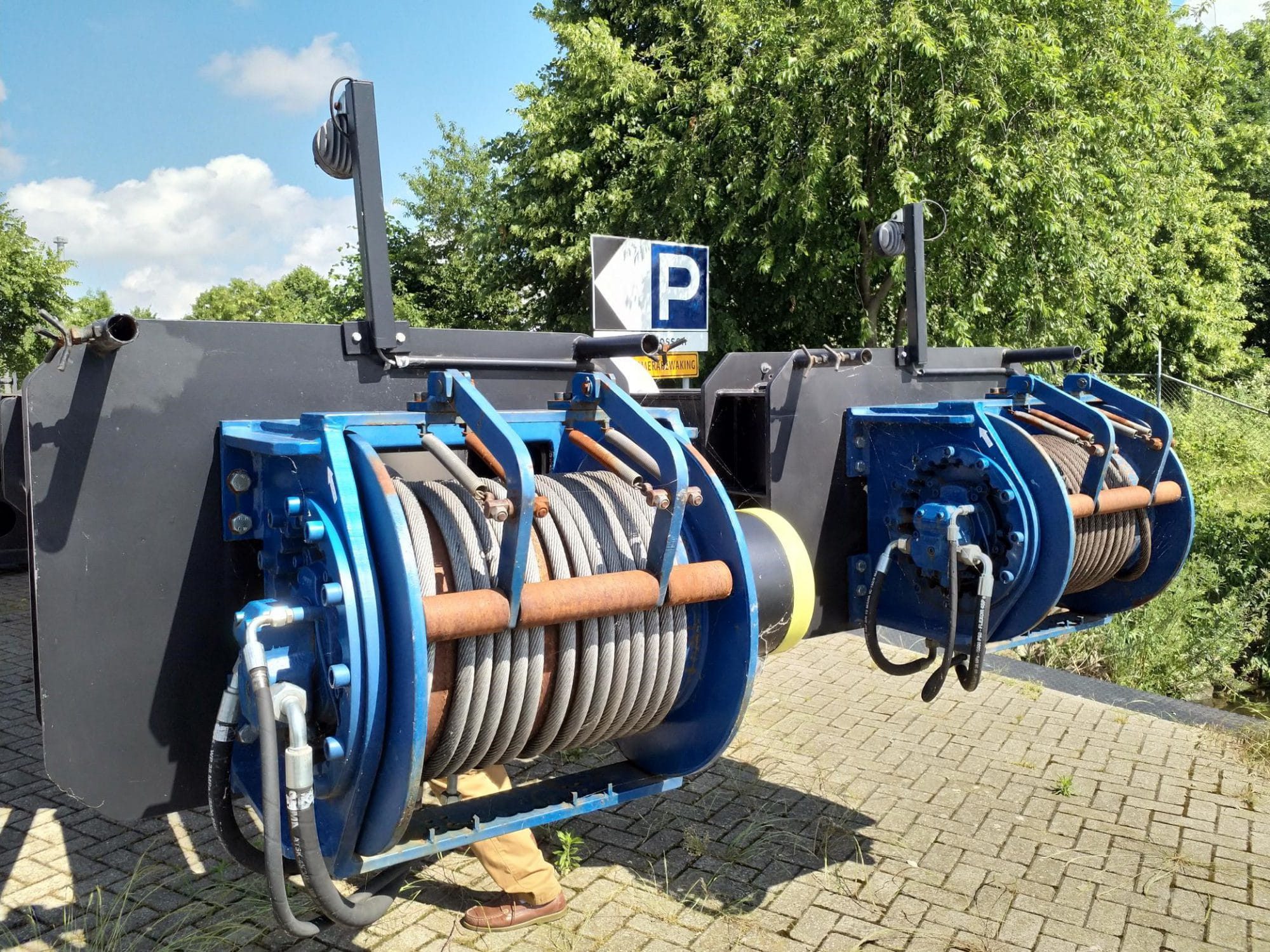

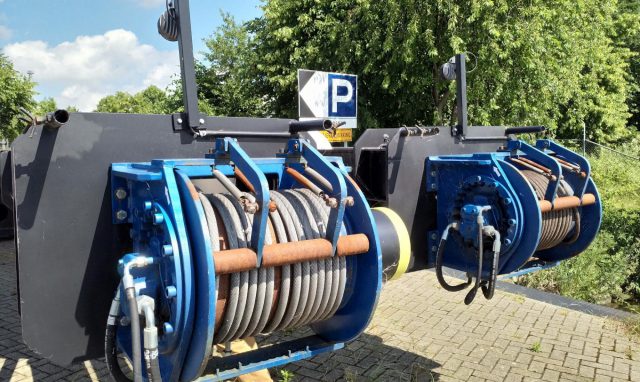

Winch with wire on top: Lifting power 10 tonnes – Lifting speed: 8 m./min.
Tilting system to be connected on deck with twistlocks, breakingforce per twistlock 50 tonnes.
Operation 1) manual, 2) Electric, 2) Remote controlled.
