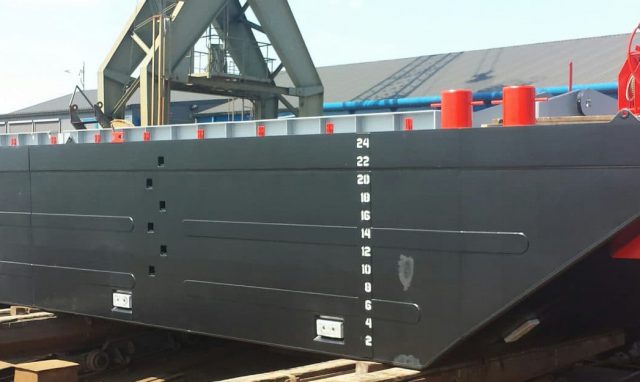

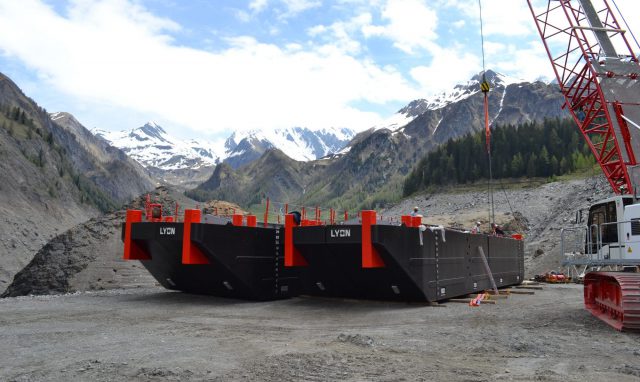

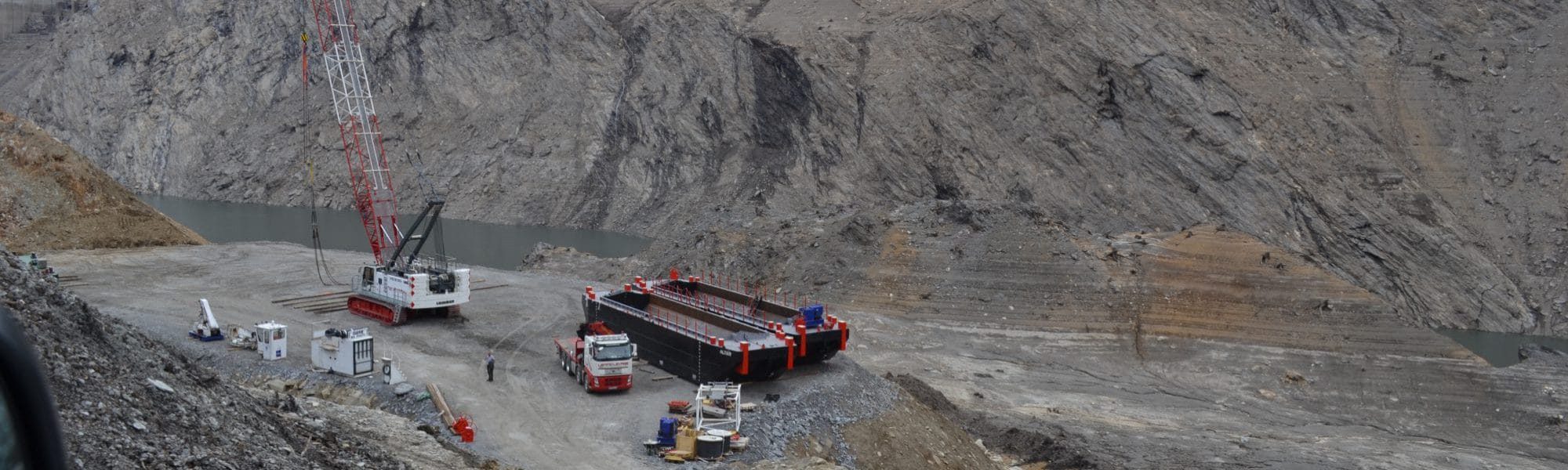

80 M3 Modular Splitbarge(s)

Ref # SoldPrice at request

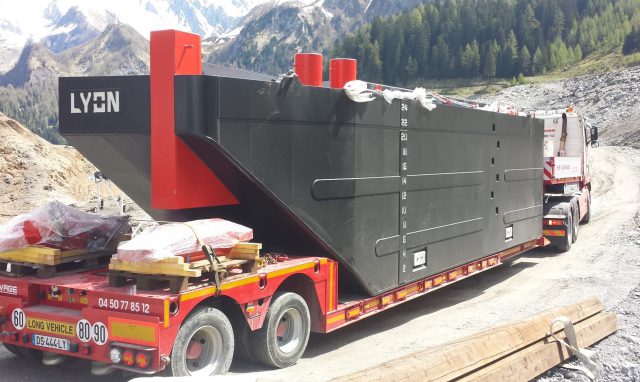

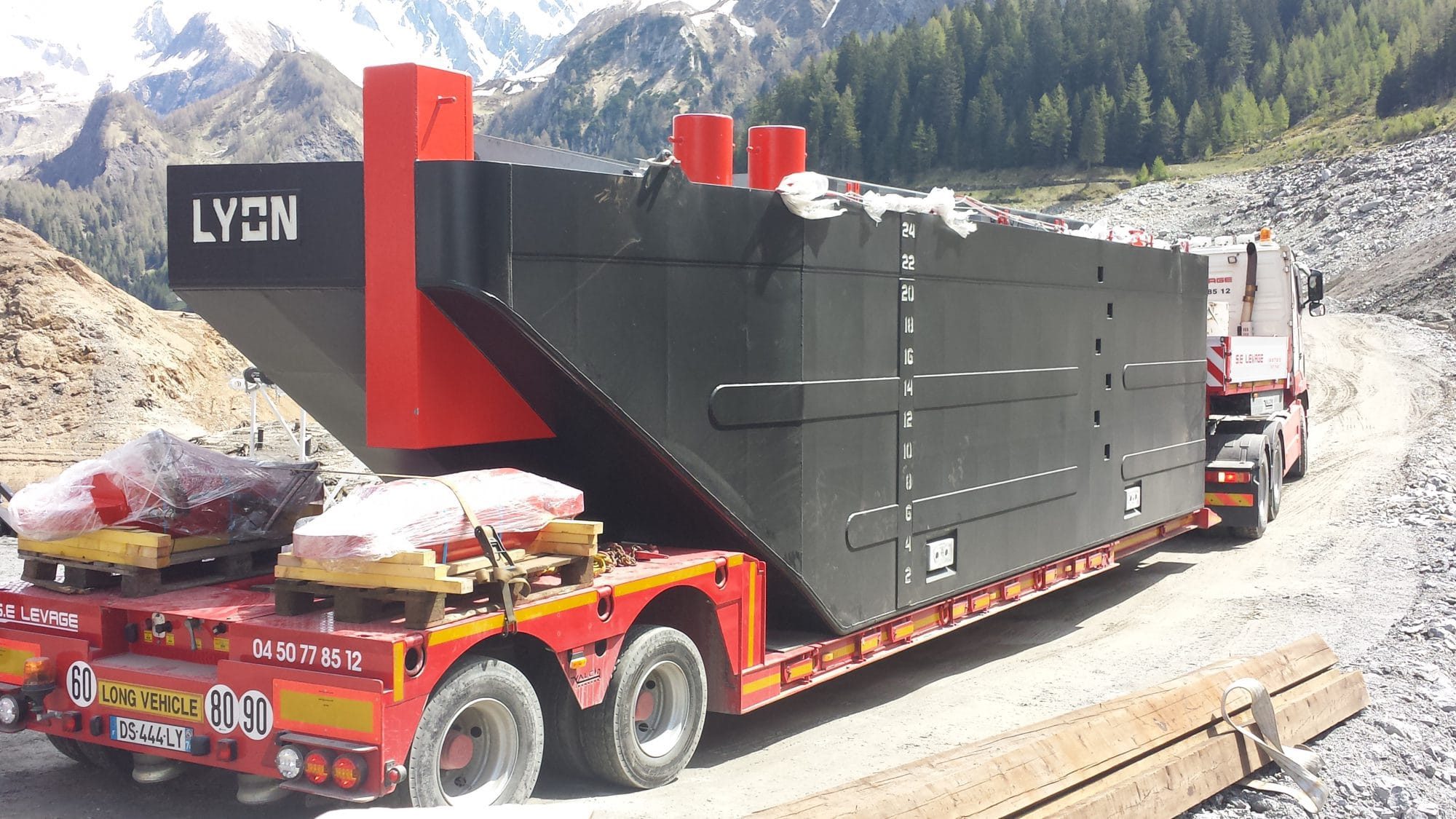

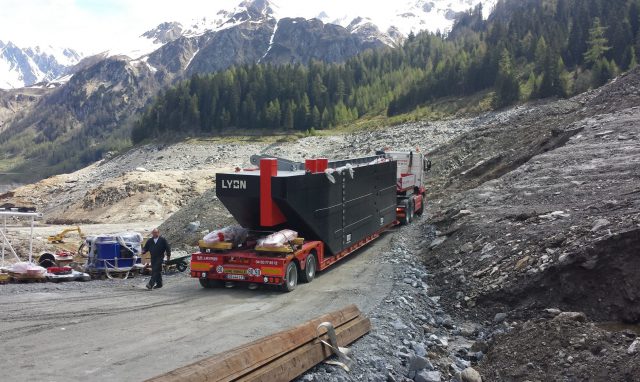

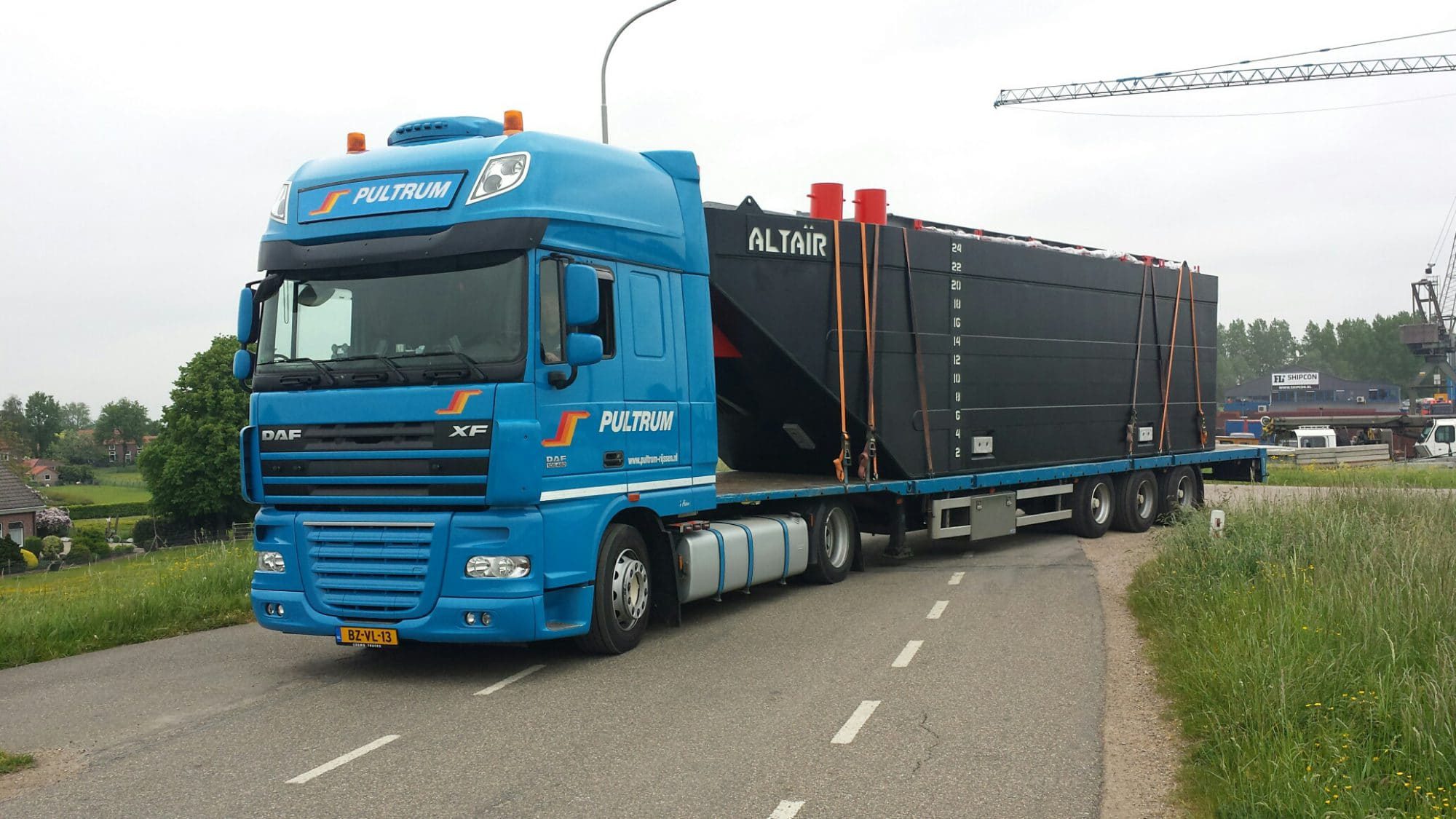

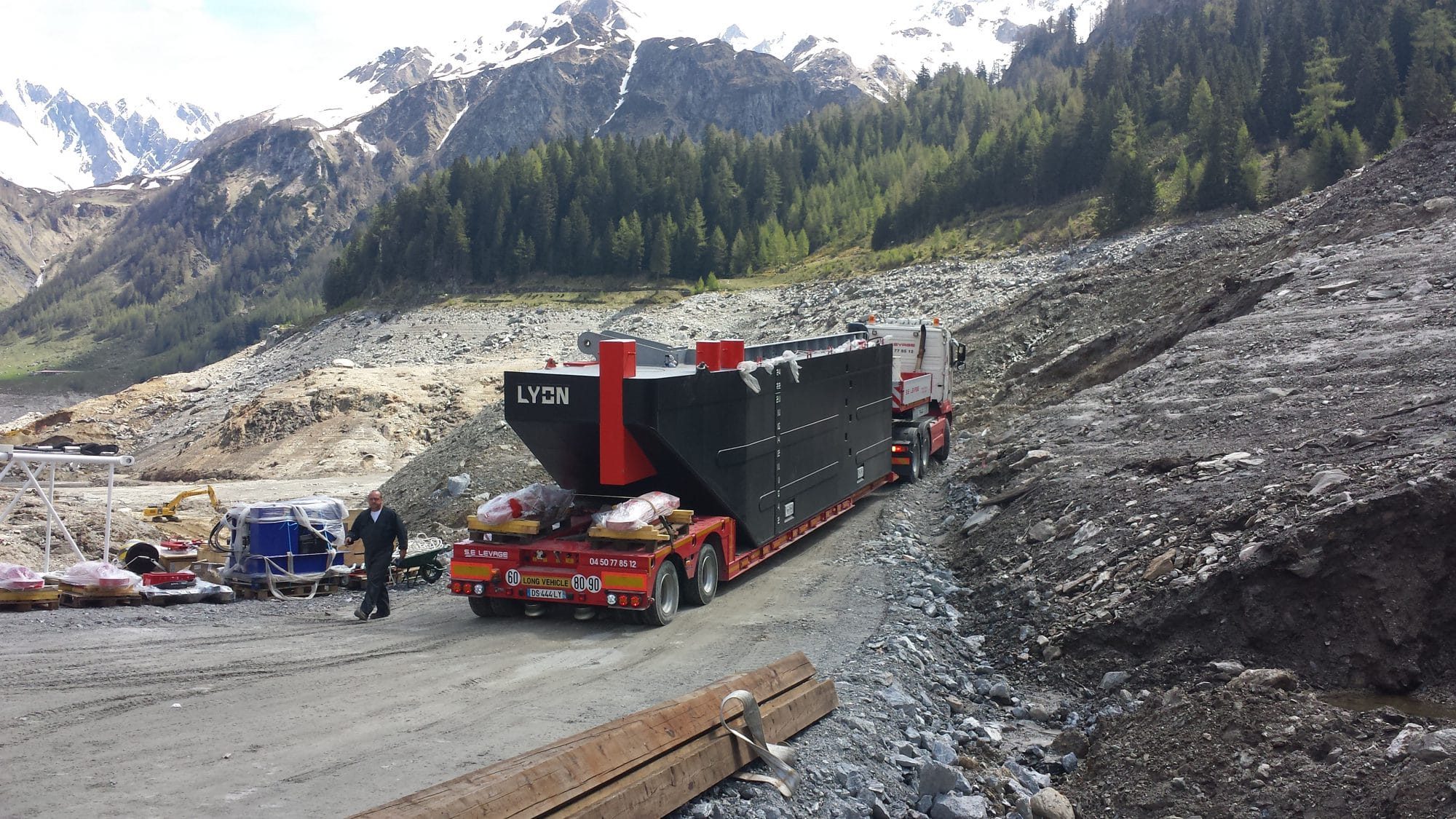

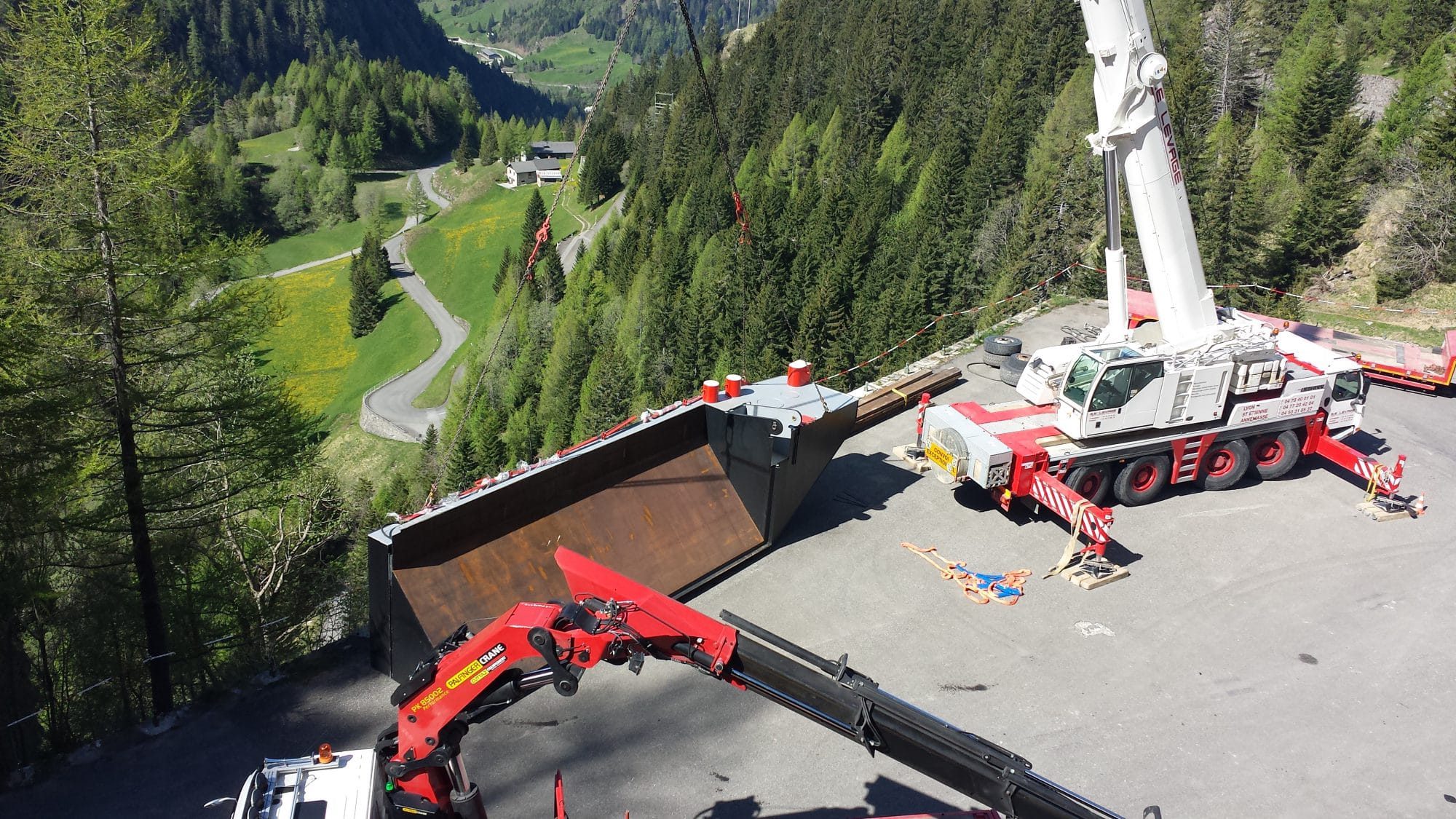

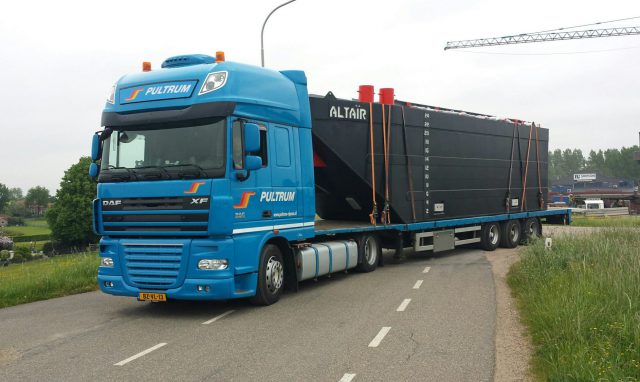

80 m3 modular splithopper barges, fully road transportable on standard trailers.

Specifications

Length over all 24,36 m (4 x 12,18 m)

Beam over all 4,86 m (4 x 2,43 m)

Depth 2,591 m

Draft max 2,40 m

Hopper volume 80 M3

Medium material density 1,8 t/m3

Light displacement 80 tonnes

Loaded displacement 224 tonnes

Hull opening angle 60 degrees

Couplings to secure the 4 separate units 4 pieces

Outside shell plating 8 mm

Deck plating 10 mm

Bottom 8 mm

Upper inside plating 12 mm

Lower inside plating 15 mm

Transverse bulkhead 8 mm

Reinforced frame 8 mm

Side girder at 1 m from longitudinal axis 8 mm

Inside longitudinal bulkhead (internal) 8 mm

Coaming 760 mm above deck 12 mm

Legs 8 mm

Knee plates 8 mm

2 Hinges and 2 hydraulic cylinders / rods

Hydropack for opening/closing the barge

Coupling winches (1 fwd and 1 aft)

Anchorwinch

Rubber seal Bollards
