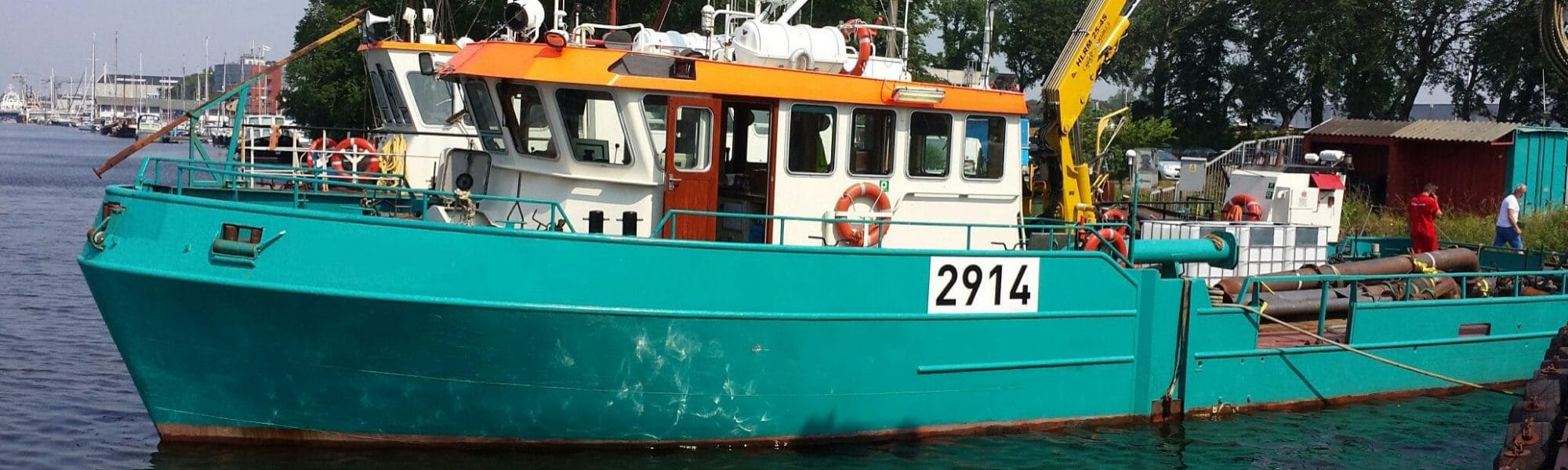

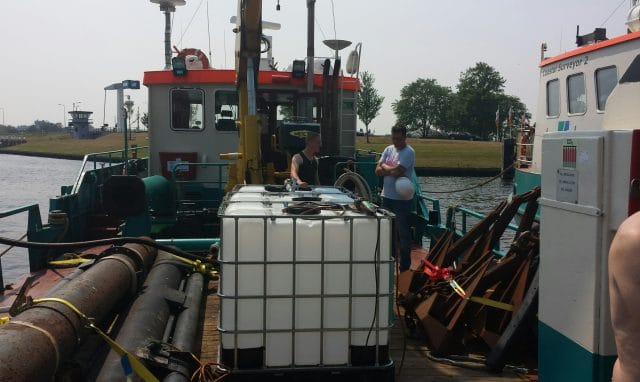

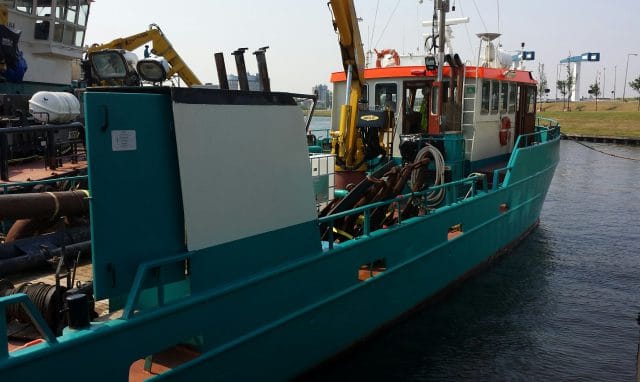

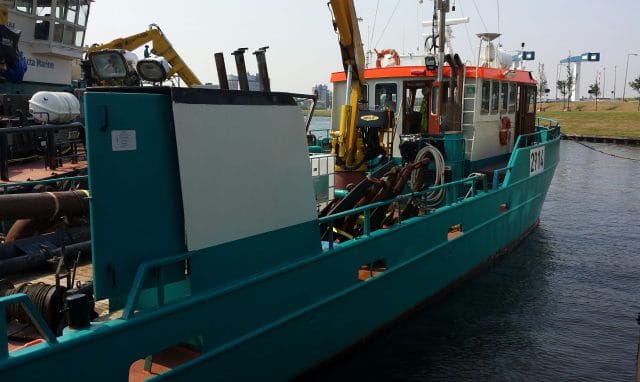

Versatile workboat with dredging capability.
Specifications
Classification
Trading area : Coastal waters up to 15 nautical miles
Classification society : Bureau Veritas
Class ship type : Special service / Support vessel
Class notation : I * Hull * Mach
Principal dimensions
Length o.a. : 23,05 m
Breadth o.a. : 6,15 m
Draft : 0,90 m
GRT : 68
NRT : 20
Max. deck load : 2.5 ton/m²
Free deck space : 44 m²
Machinery / Propulsion
Maximum speed : 8,5 knots
Power output : 250 kW / 335 hp
Propulsion : Twin fixed pitch propellers & bow thruster
Main engines : DAF DK1160M1
Auxiliary engines : 40 kVA
21 kVA
Miscellaneous
4-point mooring : yes
Deck winch MS aft : 1 ton
Deck winch PS aft : 1 ton
Deck winch PS fore : 1 ton
Deck winch SB aft : 1 ton
Deck winch SB fore : 1 ton

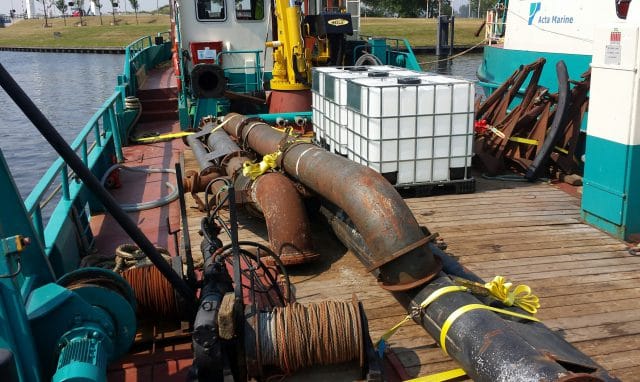

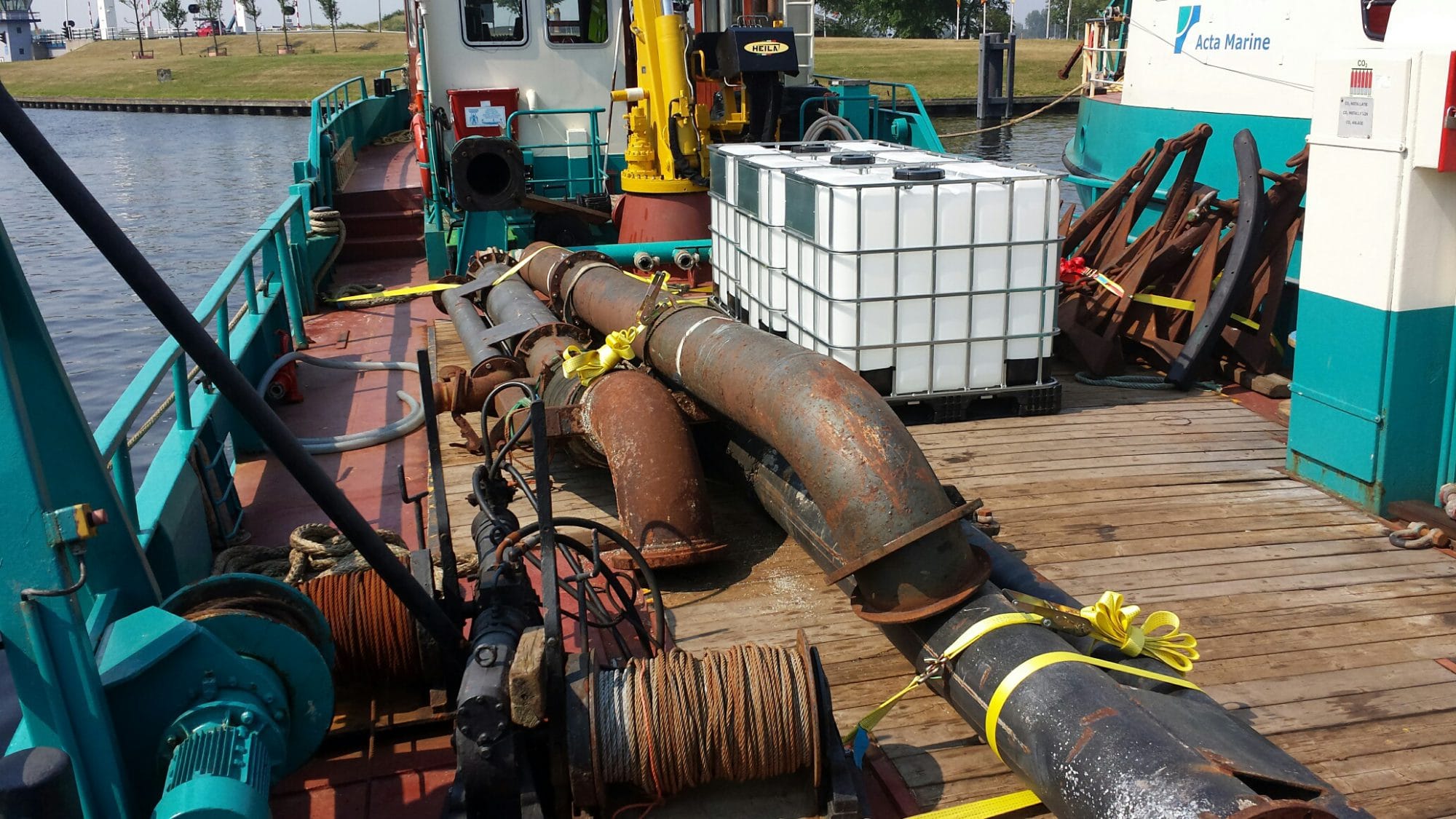

Dredging pump : 1200 m3/hr
Hydraulic deckcrane : 25 tm, 1,6 ton at 12,62 m
Winch : 1 ton
Tank capacities
Fuel : 5 m³
Fresh water : 2 m³
Accommodation
Fully airconditioned, galley, sanitary facilities & 3 x double cabins.
Navigation and communication systems
– AIS JRC JHS-182
– AP Navigator with electronic charts Philips MK9 GPS-D
– Autopilot Navitron NT920
– DGPS Furuno GP-150
– DGPS Sensor JRC 212 Model JLR-4331E
– Echosounder Furuno FCV-667
– Epirb Jotron Tron 30S MKII
– Magnetic Compass Cassens & Plath Standard
– Navtex SRH NAV5 GMDSS
– Radar JRC JMA05212-4/6
– Sart Debeg 5900
– VHF Sailor RT144C
– VHF DSC Debeg 6322
– VHF GMDSS handheld Radio Holland SRH 50
